How to Use Sport-Z™
STEP 1
Insert 2 AAA batteries (included).
STEP 2
Attach lead wires.
STEP 3
Attach 2 Gel Pad Electrodes (included),
or any of our patented garment electrodes.
STEP 4
Attach Electrodes to body.
Refer to the WearTech™
Electrode Placement Guide.
STEP 5
Attach Velcro™ strap to body.
(OPTIONAL)
STEP 6
Turn on the unit.
Select P1 for 30 minute treatment.
Select P2 for 8 hour treatment.
Adjust intensity to below sensory.

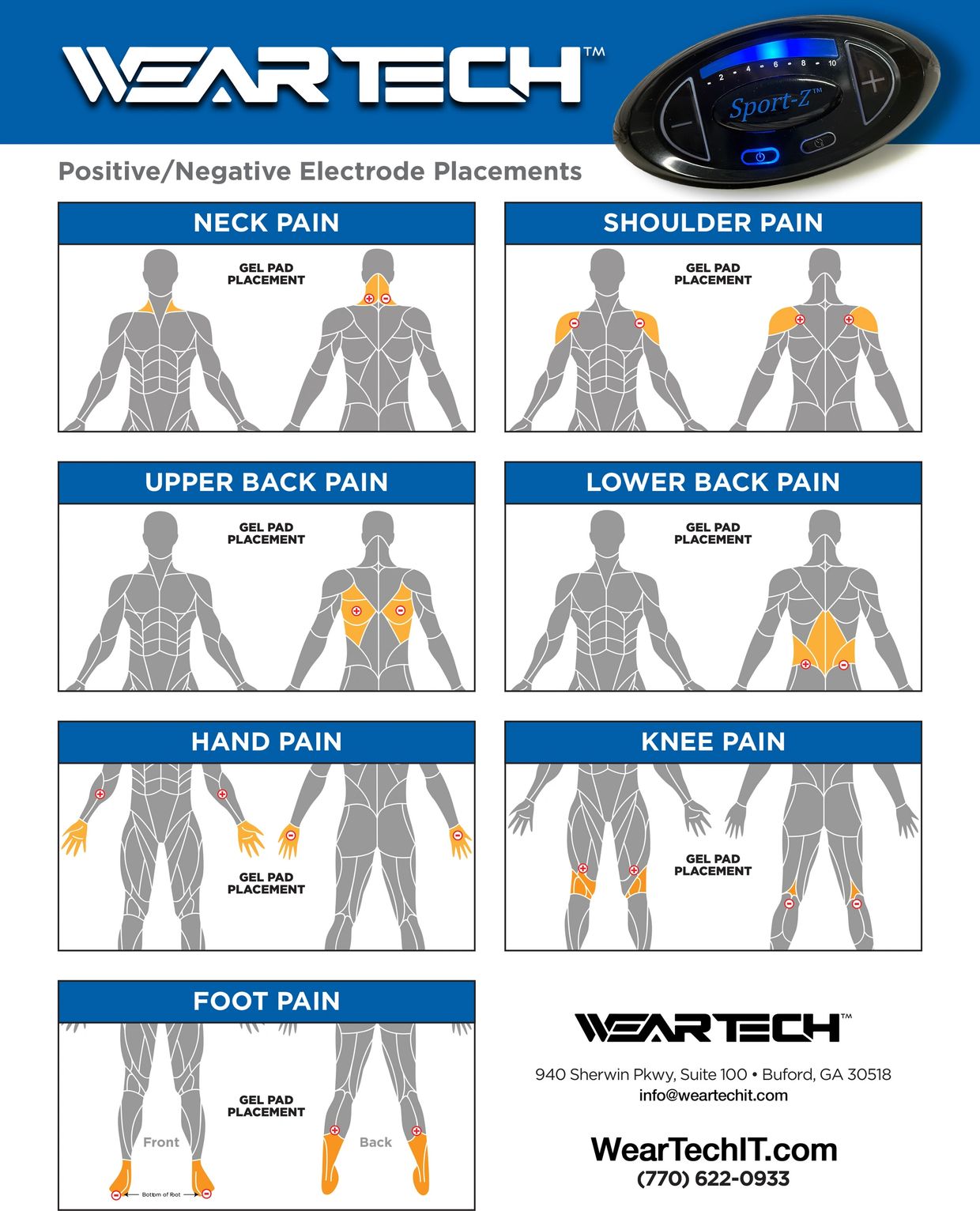

Electrode Placement Recommendations
Sport-Z™ Instructional Manual
- Make sure the skin is clean on the treatment area.
- Snap Sport-Z™ lead wires into the back of the device.
Place the lead wires on the back of the Sport-Z™, making sure that the Black button (-) is attached to the negative snap and that the red button is attached to the positive (+) snap. - Place the two (2) AAA in battery compartment.
- Place the Sport-Z™ 3” round electrodes to the red and black lead wire pins. And then place the black lead wire /electrode furthest away from the heart on a muscle bed and the red lead wire four to five inches away on another muscle. (see photos illustrations below here)
- Turn on the Sport-Z™ by pushing down the On/Active button on the left hand side of the Sport-Z™; this on switch actives the device for a 30 minute treatment P1; by pushing the right hand button this activated the 8 hour treatment P2.
- P1 is a 30 min. treatment and if selected the Sport-Z™ will automatically turn off after the 30 min. treatment is complete.
- P2 is an 8 hour treatment where the Sport-Z™ will cycle on and off automatically over 8 hours. It will be on for 20 min and off for 40 min. during the treatment period.
- Then pump the increase button (+) to light sensation or comfort level and then you can reduce sensation by decrease button (-) to below sensory feeling. Note: that using the 8 hour treatment at night while sleeping the therapeutic level of stimulation is always below sensory
- The Sport-Z™ will turn off automatically once the 30 min (P2) or 8 hr. (P2) treatments are completed. If you want to stop the stimulation, hold down the button On/Active for 5 seconds.
- If you experience any skin irritation, stop the therapy and consult your clinician.
- The Sport-Z™ is very safe to use and you should use them as often as you can both daily as well as at night.
How to use Sport-Z™ | Step-by-step instructions + electrode placement guide
- Are the batteries dead? – Sport-Z™ runs on 2 AA batteries.
Solution: Replace the batteries - Are the batteries properly oriented in the battery compartment?
Solution: Make sure the that (+) pole is connected to the (+) end. Same for (-) pole. - Have the electrodes dried out?
When you place the electrodes on your skin they should feel slightly wet, and when you pull them off they should still feel sticky. If neither of these is the case, then replace them. The whole electrode should have contact with the skin, and there should be no curled edges.
- Are the batteries dead? – Sport-Z™ runs on 2 AA batteries.
Solution: Replace the batteries. - Have the leads fallen off?
Solution: Are the electrodes moving under your clothes so that contact with the skin is lost? Experiment with the way that the leads hang when they are in place. Try securing the electrodes with micropore tape around the edges. - Are the electrodes past their effectiveness?
Solution: If the electrodes feel dry or have lost their stickiness, replace them with a fresh pair. - Have you become tolerant to the signal strength?
Solution: As you become more confident with using your Sport-Z™, you may find that you will benefit from higher signal strengths. Try increasing the (+) power output to see whether this is the case.
- Try varying the position of the electrodes, and the length of time of contact with the skin.
- Sometimes pre-treating the skin with low strength hydrocortisone cream can reduce the severity of a reaction. If symptoms persist, please speak to your doctor.
- Try using different manufacturers electrodes (which may have different chemicals in the adhesive).
